ersa.gnu-linux.net

Fujitsu Siemens Scenic D i815e
Processor Intel Pentium III 933 MHz
133MHz FSB, 256KB L2 Cache
Motherboard Fujitsu Siemens D1214 mATX System Board
Intel Chipset 815e (GMCH 82815, ICH 82801BA)
Case Slim Desktop Case
PSU Fujitsu Minebea S26113-E456-V20 110W
Ram 320MB SD-RAM (64MB PC133 + 256MB PC100)
Videocard Matrox G450 AGP (G45FMLDVA32DBF)
Low Profile 32MB DVI
Hard Disk Samsung SpinPoint V40 (SV2011H) 20GB ATA-100 (2MB Cache) 5400 RPM
Hard Disk SD Card to IDE 3.5" HDD Adapter
16 GB Verbatim SD Card
CDROM Emprex 1008IM CD/DVDRW
40/8r 40/4w 32/2rw IDE
Floppy Gotek Floppy Drive Emulator USB 1.44 MB
Sound Analogue Devices AD1885 (AC'97 Audio Codec) (Integrated)
Network Intel 82559ET Lan Controller (10/100Mbit) (Integrated)
Controller VIA VT6421A RAID Controller PCI (3x SATA + 1x IDE)
OS Windows 2000 Professional
Function

Retro Computing


Extra Information
Purchase Date July 2021
Purchase Cost 114.49 Euro
Upgrades
June 2021:
Gotek Floppy Drive Emulator USB 1.44MB (38,29 Euro)
SD Card to IDE 3.5" HDD Adapter (15.29 Euro)
July 2021:
Matrox G450 AGP (G45FMLDVA32DBF) Low Profile 32MB DVI (31.34 Euro)
August 2021:
Emprex 1008IM CD/DVDRW (20.54 Euro)
VIA VT6421A RAID Controller PCI (7.00 Euro)

Description

A 2000/2001 era machine (no clear date on the mainboard or machine, but the PSU was manufactured week 50 of 2000).

Picked up as a retro computer restoration / tinkering project. The machine arrived in a fairly grimy state and required some cleaning before it was put in use. The BIOS was upgraded from version 1.03 to 1.13.

The machine was fitted with a Gotek Floppy Drive emulator. The Gotek can be set up by inserting an USB stick and holding both gotek buttons while the machine is turned on (this will automatically erase the USB stick).

The original LG GCE-8520B CD-R/RW which came with the machine was not functional. It was replaced with a used Emprex 1008IM CD/DVDRW drive.

Drivers and latest BIOS can be downloaded from fujitsu.com when searching for the mainboard "D1214" and video drivers can be downloaded from matrox.com.

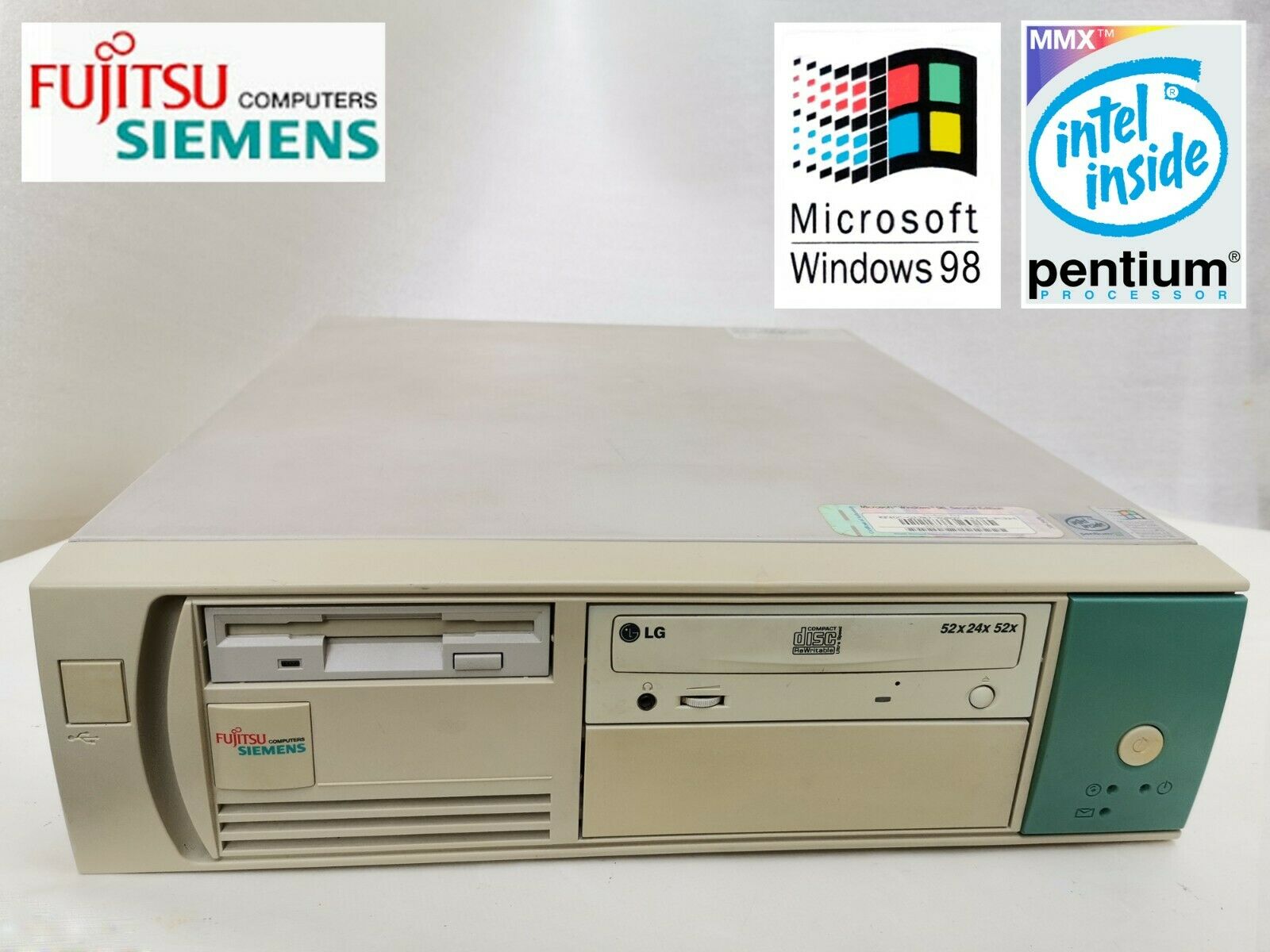

Click here to view a picture.
