ganymede.gnu-linux.net

AMD Ryzen 7 PRO 5750GE
Processor AMD Ryzen 7 PRO 5750GE
3.2GHz (Max 4.6GHz), 16MB Cache
Cooler Noctua NH-L9a-AM4 37mm low-profile
Motherboard Gigabyte B550I AORUS Pro AX 1.0
Case Supermicro SuperChassis 721TQ-250B2 ITX
PSU 1U 250W Flex ATX Multi-output Bronze Power Supply, FSP FSP250-50LC
Ram 32GB HyperX Predator
(2x16GB DDR4 PC4-25600 3200MHz DDR4)
Videocard Radeon Graphics (Integrated)
Hard Disk Samsung 980 NVMe M.2 SSD 500GB
Hard Disk Samsung 980 NVMe M.2 SSD 500GB
Hard Disk Seagate IronWolf (ST6000VN001)
6TB SATA3 5400 RPM (256MB Cache)
Hard Disk Seagate IronWolf (ST6000VN001)
6TB SATA3 5400 RPM (256MB Cache)
Hard Disk Seagate IronWolf (ST6000VN001)
6TB SATA3 5400 RPM (256MB Cache)
Hard Disk Seagate IronWolf (ST6000VN001)
6TB SATA3 5400 RPM (256MB Cache)
Sound Realtek ALC1220-VB codec 2/4/5.1/7.1-channel (Integrated)
Network

Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit) (Integrated)

Wireless

Intel Wifi 6 AX200 with Bluetooth 5


OS TrueNAS SCALE 24.10 (64 bit)
Function

Network Attached Storage


Extra Information
Purchase Date April 2021
Purchase Cost

1029.74 Euro (base system without 3.5" disks)
684.59 Euro (4x Seagate 6TB (ST6000VN001))

Upgrades

June 2021:
TrueNAS SCALE 21.06 "Beta" (Free Upgrade)
September 2021:
TrueNAS SCALE 21.08 "Beta" (Free Upgrade)
Samsung 980 NVMe M.2 SSD 500GB (65.07 Euro)
October 2021:
TrueNAS SCALE 22.02 "Release Candidate" (Free Upgrade)
February 2022:
TrueNAS SCALE 22.02 "Angelfish" (Free Upgrade)
December 2022:
TrueNAS SCALE 22.12 "Bluefin" (Free Upgrade)
October 2023:
TrueNAS SCALE 23.10 "Cobia" (Free Upgrade)
April 2024:
TrueNAS SCALE 24.04 "Dragonfish" (Free Upgrade)
June 2024:
AMD Ryzen 7 PRO 5750GE (362 Euro)
November 2024:
TrueNAS SCALE 24.10 "Electric Eel" (Free Upgrade)


Description

Home Built NAS; this system replaces my QNAP TS-453 Pro-8G which was in use 24/7 between December 2014 and April 2021.

The intention is to use the NAS for up to 10 years before replacing the base hardware.

The system started life running TrueNAS SCALE 21.04 "Alpha".

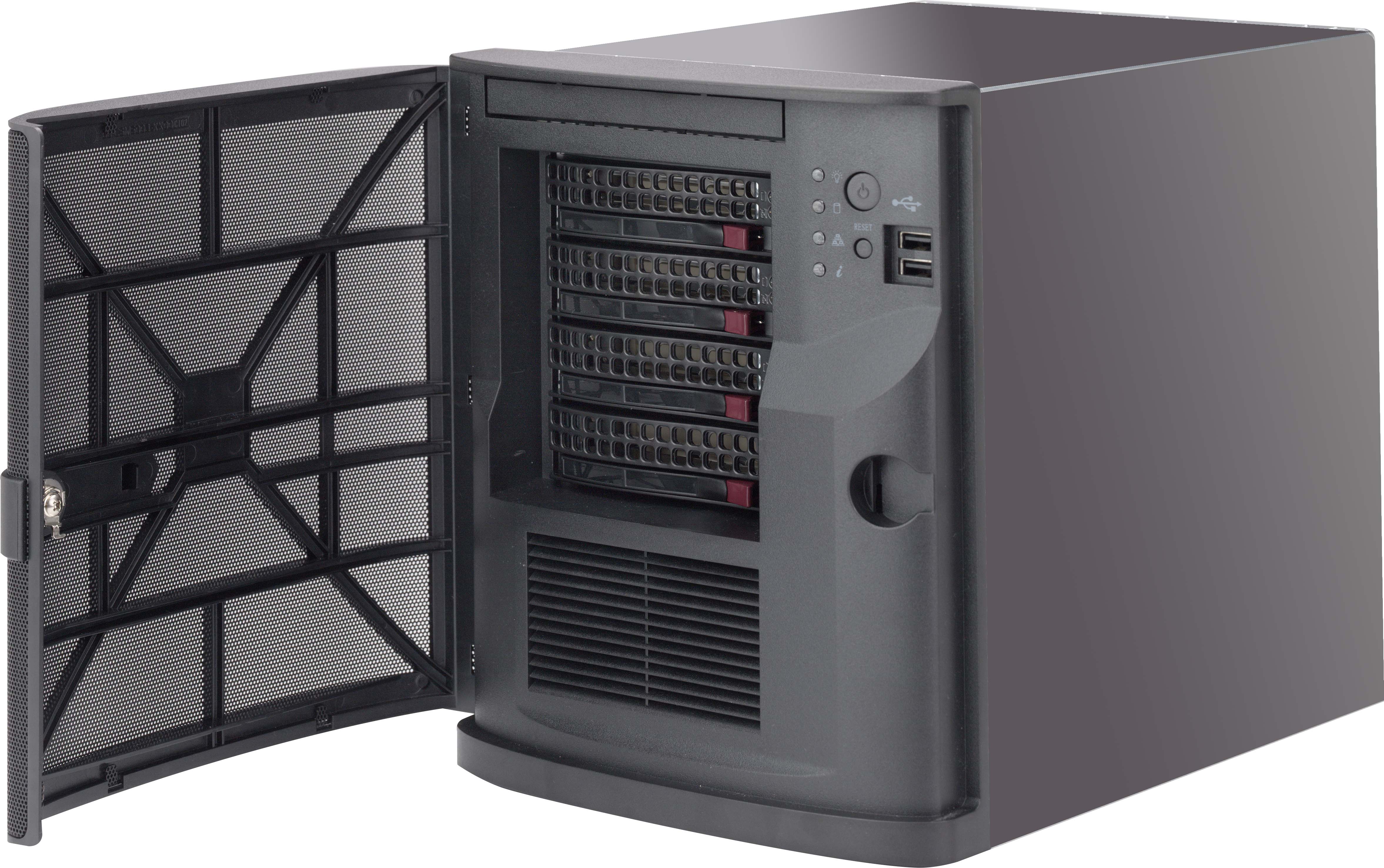

The SuperMicro SuperChassis 721TQ-250B2 is a Mini-ITX compact Mini-Tower which includes a Flex ATX 250W 80 PLUS Bronze-certified High-efficiency power supply.

While the case is intended for use with compatible SuperMicro mainboards and contains a proprietary front panel connector, it is possible to connect a 3rd party mainboard using the Supermicro CBL-0084L Frontpanel Split Cable adapter.

Clock Source
Using TrueNAS SCALE Alpha the system was not keeping time very well as the system clock was drifting very fast compared to the hardware clock and losing minutes per day) and it turns out this behaviour was due to the "tsc" clock source. Changing the clock source to "hpet" works around the issue. This can be done manually by setting "hpet" as the clocksource in "/sys/devices/system/clocksource/clocksource0/current_clocksource" (the file "available_clocksource" in the same folder shows the supported clock sources).

To set the clock source at boot I tried adding "clocksource=hpet" to the kernel boot parameters variable "GRUB_CMDLINE_LINUX_DEFAULT" in "/etc/default/grub.d/truenas.cfg" and running "update-grub" once the file has been updated. This appears to work, but the "truenas.cfg" file appears to be reset to the default value at boot time.

As an alternative solution I added under Truenas SCALE "System Settings", "Advanced", "Init/Shutdown" Scripts a "PREINIT" command "echo hpet > /sys/devices/system/clocksource/clocksource0/current_clocksource" to force the clock source override.

Cache Drive Replacement
In September 2021 the original Western Digital Black SN750 500GB NVMe SSD used as the storage pool's cache drive was found to be occasionally disconnecting from the storage pool. Online research suggests this may be related to an incompatibility with the B550i chipset. It was replaced with another Samsung 980 NVMe M.2 SSD 500GB drive and moved to an external enclosure.

CPU Upgrade
In June 2024 the original AMD Ryzen 3 PRO 4350G 4C/8T 4MB Cache processor was upgraded with an AMD Ryzen 7 PRO 5750GE 8C/16T 16MB processor.

Click here to view a picture.
